Iris ALX

Iris Anti-Ligature X has a decorative appearance with a unique diffuser designed to diffuse the LEDs with no viable ledges for self-harm.

• Independently tested to Department of Health Environmental Design Guide – Adult Medium Secure Services, Annex B: Testing Levels Type 1, Type 2, and Type 4
• Heavy gauge steel body with a high output 6mm patterned polycarbonate, anti-vandal diffuser
• Flush mounting with tamper-proof screws
• IP65 and IK20 rated (250J)
• Removable gear tray, universal fitment across the entire Iris range
• Anti-ligature, whether ceiling or wall-mounted
• Dimmable, night light and integral three-hour duration emergency options available, including self-test, EmPro, wireless and Melagen dynamic lighting

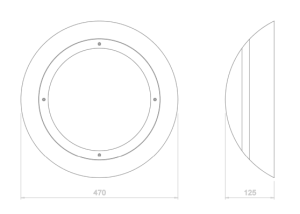

Ø470 x 125mm

High Risk
Designed for low, medium and high-risk secure services

Custodial
Washrooms, walkways, stairwells and maintenance areas

Mental Health
Bedrooms, bathrooms, corridors and day rooms

Infrastructure
Car parks, railway stations and subways

Round bulkhead, anti-ligature and anti-vandal >IK11 (50J) and >IP65 with thick aluminium body and 3mm polycarbonate LED Opal lens, secured with Resistorx screws. Part L compliant (>120lm/W), low flicker adjustable LED driver, replaceable LEDs with CRI >80 and lifetime in excess of 72,000 hours

Additional options are available. Please contact us for more information.

• EP Integral emergency
• EPS Integral self-test emergency
• EPD Integral DALI emergency
• EPH Emergency high output
• CB Central battery inverter
• DA DALI
• SD Switch dim
• MW Microwave sensor
• BT Bluetooth control
• SR Semi-recessed
• NL Night light
• 3K 3000K (5% lowe lumen)
