Iris Anti-Ligature Semi-Recessed Bulkhead
Iris Semi-Recessed Anti-Ligature Bulkhead is an IP65 and IK18 rated luminaire designed for secure environments where a lower-profile, semi-recessed installation is required. It features the same safety-first design as the surface-mounted Iris Anti-Ligature Bulkhead, with a smooth, decorative diffuser that evenly disperses LED light without any viable ledges for self-harm, combined with heavy-gauge die-cast aluminium construction and a high-output polycarbonate anti-vandal diffuser.
Variant: IRS-AL-SR
Contact for enquiry
Contact us if you have any questions about your options or would like to place an order.
Part L compliant >120 lm/w
Ligature resistant
IK rating: IK18
IP65 Ingress protection
Colours & Finishes
RAL9003 White
RAL9002 Grey White
RAL9005 Black
RAL7035 Light Grey
RAL7016 Anthracite
RAL1034 Pastel Yellow
RAL5024 Pastel Blue
RAL6019 Pastel Green
RAL6034 Pastel Turquoise
RAL4009 Pastel Violet
High Risk – Designed for low, medium and high-risk secure services
Custodial – Washrooms, walkways, stairwells and maintenance areas
Mental Health – Bedrooms, bathrooms, corridors and day rooms
Infrastructure – Car parks, railway stations and subways
- Iris Anti-Ligature Semi-Recessed has a decorative appearance, with a unique diffuser designed to diffuse the LEDs and no viable ledges for self-harm
- Heavy gauge die-cast aluminium body, with hard-wearing white powdercoating
- High output 3mm polycarbonate anti-vandal diffuser
- Recessed mounting with tamper-proof screws
- Lower profile aesthetic compared with equivalent surface-mounted
- IP65 and IK18 rated (200J)
- Removable gear tray, universal fitment across the entire Iris range
- Dimmable, night light and integral three-hour duration emergency options available, including self-test, EmPro, wireless and Melagen dynamic lighting

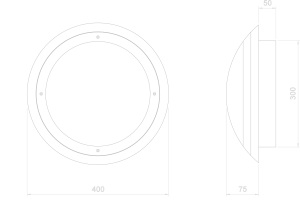

Diameter 400mm Depth (including body) 125mm Depth (projection) 75mm
Product downloads
Round semi-recessed bulkhead, anti-ligature and anti-vandal >IK11 (50J) and >IP65 with thick aluminium body and 3mm polycarbonate LED Opal lens, secured with Resistorx screws. Part L compliant (>120lm/W), low flicker adjustable LED driver, replaceable LEDs with CRI >80 and lifetime in excess of 72,000 hours
