Guardalux Over Door Emergency Exit Blade
The Guardalux Over Door Emergency Exit Blade is designed to clearly indicate final exits on emergency routes. Perfect for high-risk environments, it provides visible, compliant signage above exit doors to ensure safe and efficient evacuation during emergencies.
Variant: GDLODB
Contact for enquiry
Contact us if you have any questions about your options or would like to place an order.
Part L compliant >100 lm/w
IK rating: IK14
IP54 Ingress protection
Colours & Finishes
RAL9003 White
- Guardalux Over Door Emergency Exit Blade is an emergency exit sign with a unique lens designed to diffuse the LEDs with high impact resistance and high efficacy
- Zinc coated steel body with a high output polycarbonate, anti-vandal diffuser
- Flush mounting with tamper-proof screws suitable for ceiling mounting (suspended option available) IP54 and IK14 rated (100J)
- Removable gear tray Rear cable entry, side entry available upon request
- Fixed output, maintained and non-maintained integral three-hour duration emergency options available, including self-test, DALI, and wireless monitoring
- Reduced ligature and helps achieve 15 lux minimum emergency required for locked doors and gates as well as complying with emergency exit signage 4-year warranty on emergency battery

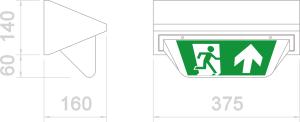

Length 375mm Depth 160mm Height 200mm
Custodial – Emergency signposting and exit route indication in corridors, walkways, stairwells and maintenance areas
Mental Healthcare – Emergency signposting for corridors, stairwells and day rooms
Infrastructure – Exit routes in car parks, railway stations, subways and social housing
Product downloads
Emergency exit sign, vandal resistant >IK14 (50J) and >IP54 with 1.2mm zinc coated steel body and 4mm polycarbonate LED Opal lens, secured with Resistorx screws. Part L compliant (>100lm/W), low flicker adjustable LED driver, replaceable LEDs with CRI >80 and lifetime in excess of 72,000 hours
