Guardalux Over Door Emergency

• Guardalux Over Door is an emergency bulkhead with a unique lens designed to diffuse the LEDs with high impact resistance and high efficacy.
• Zinc coated steel body with a high output polycarbonate, anti-vandal diffuser Flush mounting with tamper-proof screws
• IP54 and IK15 rated (125J)
• Removable gear tray
• Rear cable entry, side entry available upon request
• Fixed output, maintained and non-maintained integral three-hour duration emergency options available, including self-test, DALI, and wireless monitoring
• Reduced ligature and helps achieve 15 lux minimum emergency required for locked doors and gates 4-year warranty on emergency battery

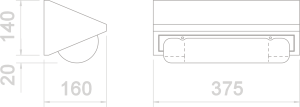

Length 375mm Depth 160mm Height 160mm

Custodial – Emergency lighting in corridors, walkways, stairwells and maintenance areas

Mental Healthcare – Emergency lighting in corridors, stairwells and day rooms

Particularly effective above locked doors and gates to help meet minimum emergency light levels

Emergency bulkhead, vandal resistant >IK15 (50J) and >IP54 with 1.2mm zinc coated steel body and 4mm polycarbonate LED Opal lens, secured with Resistorx screws. Part L compliant (>120lm/W), low flicker adjustable LED driver, replaceable LEDs with CRI >80 and lifetime in excess of 72,000 hours

• Integral emergency
• Integral self-test emergency
• Integral DALI emergency
• Emergency high output
• Central battery inverter
• DALI
• Switch dim
• Microwave sensor
• IP65 upgrade
• RAL9005 black finish
• RAL7016 grey finish
• 3000K (5% lower lumen)
