Guardalux Emergency Exit Blade

• Guardalux Blade is a single or double sided emergency exit sign with a unique lens designed to diffuse the LEDs with high impact resistance and high efficacy
• Zinc coated steel body with a high output polycarbonate, anti-vandal diffuser
• Flush mounting with tamper-proof screws suitable for ceiling mounting (suspended option available)
• IP54 and IK14 rated (100J)
• Removable gear tray
• Rear cable entry, side entry available upon request
• Fixed output, maintained and non-maintained integral three-hour duration emergency options available, including self-test, DALI, and wireless monitoring
• Reduced ligature when ceiling-mounted
• 4-year warranty on emergency battery

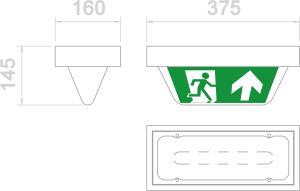

Length 375mm Width 160mm Depth 145mm

Custodial – Emergency signposting and exit route indication in corridors, walkways, stairwells and maintenance areas
Mental Healthcare – Emergency signposting for corridors, stairwells and day rooms
Infrastructure – Exit routes in car parks, railway stations, subways and social housing

Emergency exit sign, vandal resistant >IK14 (50J) and >IP54 with 1.2mm zinc coated steel body and 4mm polycarbonate LED Opal lens, secured with Resistorx screws. Part L compliant (>100lm/W), low flicker adjustable LED driver, replaceable LEDs with CRI >80 and lifetime in excess of 72,000 hours

Optional extras are available. Please get in touch with us to discuss.

• EPS Integral self-test emergency
• EPD Integral DALI emergency
• NMS Non-maintained self-test
• NMD Non-maintained DALI
• CB Central battery inverter
• RMU Single-sided arrow up
• RML Single-sided arrow-left
• RMR Single-sided arrow-right
• RMLR Double-sided arrows left/right
• RMUU Double-sided arrows up/up
• IP IP65 upgrade
• PB RAL9005 black finish
• PG RAL7016 grey finish
• 3K 3000K (5% lower lumen)
• 5K 5000K
