Guardalux Bulkhead Emergency Light
The Guardalux Bulkhead Emergency Light provides robust emergency illumination for prisons, police custody, law courts, and secure healthcare environments, including communal areas, corridors, stairwells, cubicles, and store rooms. Designed for high-risk settings, it delivers reliable, long-lasting emergency lighting to maintain safety and compliance in critical situations.
Variant: GDLBH
Contact for enquiry
Contact us if you have any questions about your options or would like to place an order.
Part L compliant >120 lm/w
IK rating: IK15
IP54 Ingress protection
Colours & Finishes
RAL9003 White
- Guardalux Bulkhead is an emergency bulkhead with a unique lens designed to diffuse the LEDs with high impact resistance and high efficacy.
- Zinc coated steel body with a high output polycarbonate, anti-vandal diffuser
- Flush mounting with tamper-proof screws suitable for ceiling and wall mounting
- IP54 and IK15 rated (125J)
- Removable gear tray
- Rear cable entry, side entry available upon request
- Fixed output, maintained and non-maintained integral three-hour duration emergency options available, including self-test, DALI, and wireless monitoring
- Reduced ligature when ceiling-mounted
- 4-year warranty on emergency battery
- Available from stock

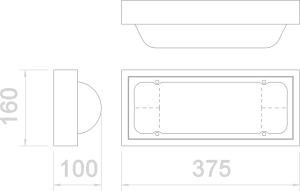

Length 375mm Width 160mm Depth 100mm
Custodial – Emergency lighting in corridors, walkways, stairwells and maintenance areas
Mental Healthcare – Emergency lighting in corridors, stairwells and day rooms
Emergency bulkhead, vandal resistant >IK15 (50J) and >IP54 with 1.2mm zinc coated steel body and 4mm polycarbonate LED Opal lens, secured with Resistorx screws. Part L compliant (>120lm/W), low flicker adjustable LED driver, replaceable LEDs with CRI >80 and lifetime in excess of 72,000 hours
